The car market is in a state of flux. With increasingly stringent environmental laws, many car drivers are opting for an electric car. The number of public and fast charging stations has also increased dramatically in recent years. This increase ensures that the demand for charging cables rises.

Carpoint offers a wide range of charging cables for electric vehicles which are tested and certified and meet all electrical safety requirements. Carpoint products are developed with sustainability in mind. The robust construction ensures that the products can be used on a daily basis.

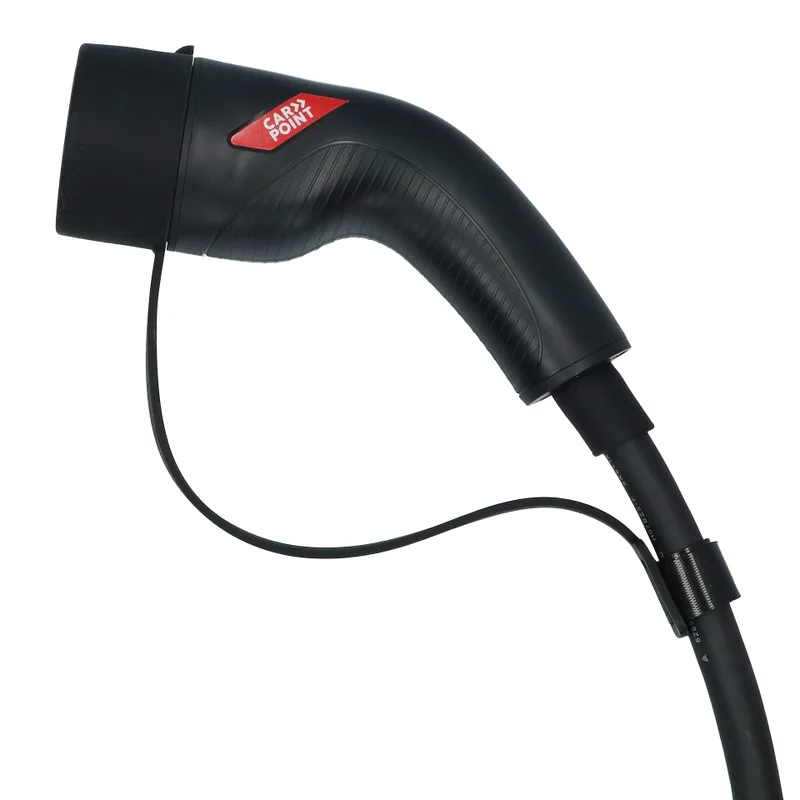

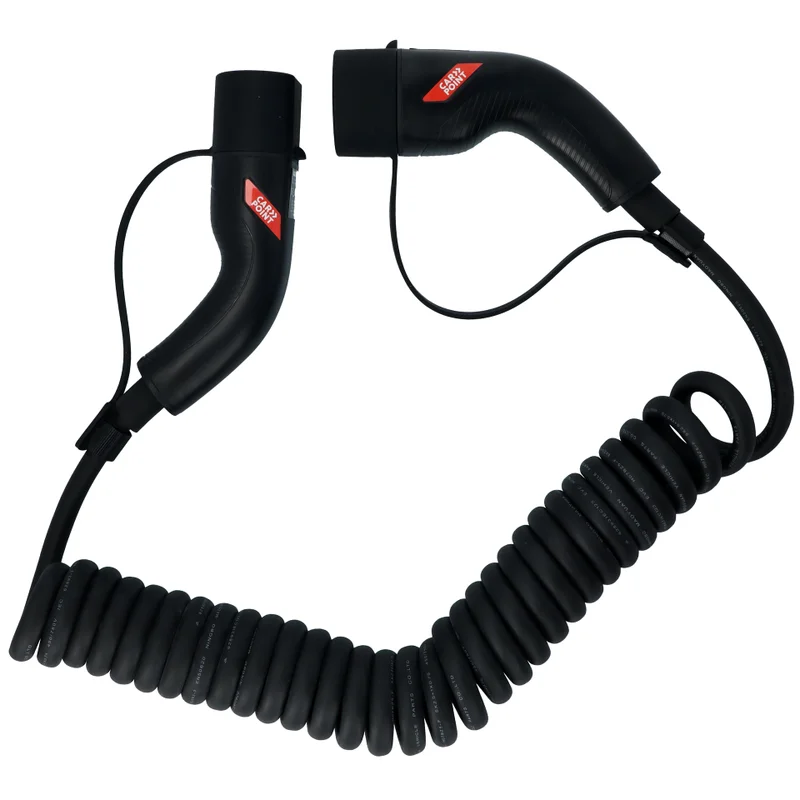

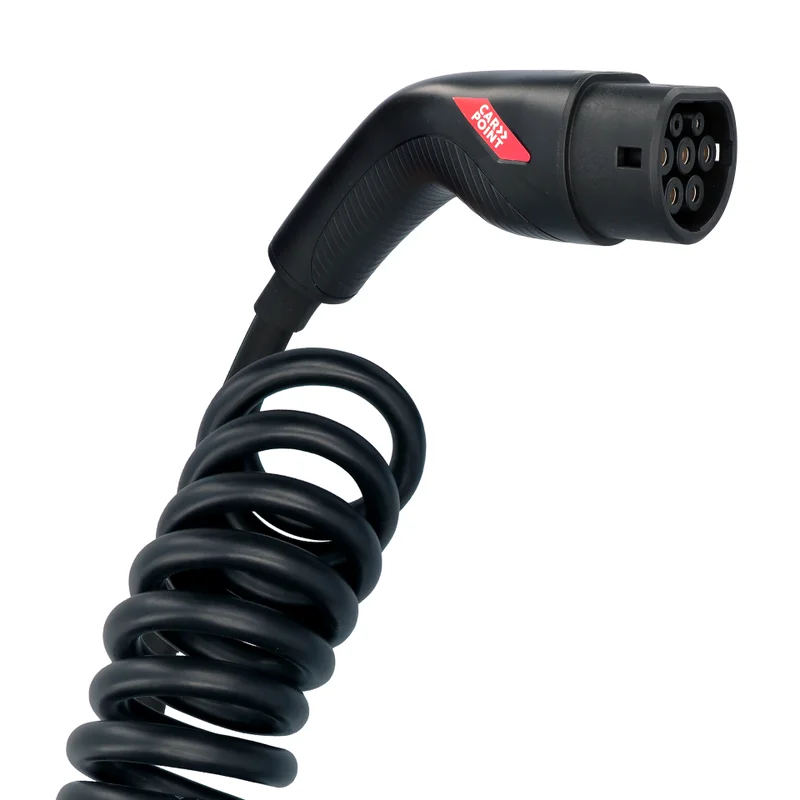

Carpoint 1 Phase spiral charging cable for all electric vehicles with a type 2 connection. With 16 Amp capacity, it charges safely via 1 phase. Plug charge side type 2 male and plug charge side car type 2 female both plugs comply with the IEC 62196-2 international standard. Both plugs are equipped with a protective cap.

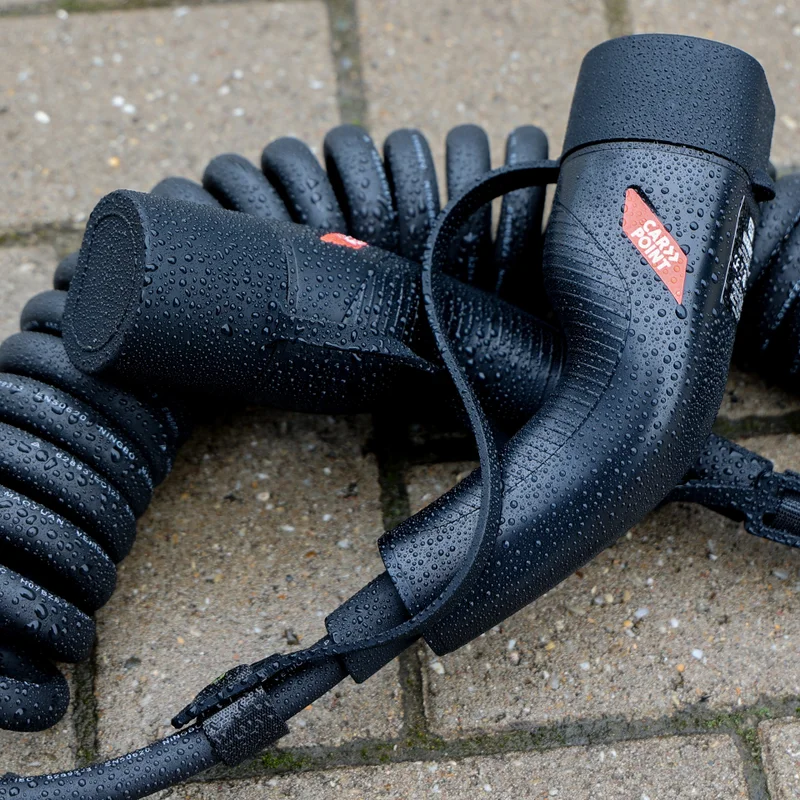

The Carpoint charging cables are designed according to the IP55 classification, making the cable safe to use outdoors in all weather conditions. The total length of 6 meter offers maximum flexibility. Attention: be sure the maximum cable current and phases match with the highest values of your charger and are supported by your car.

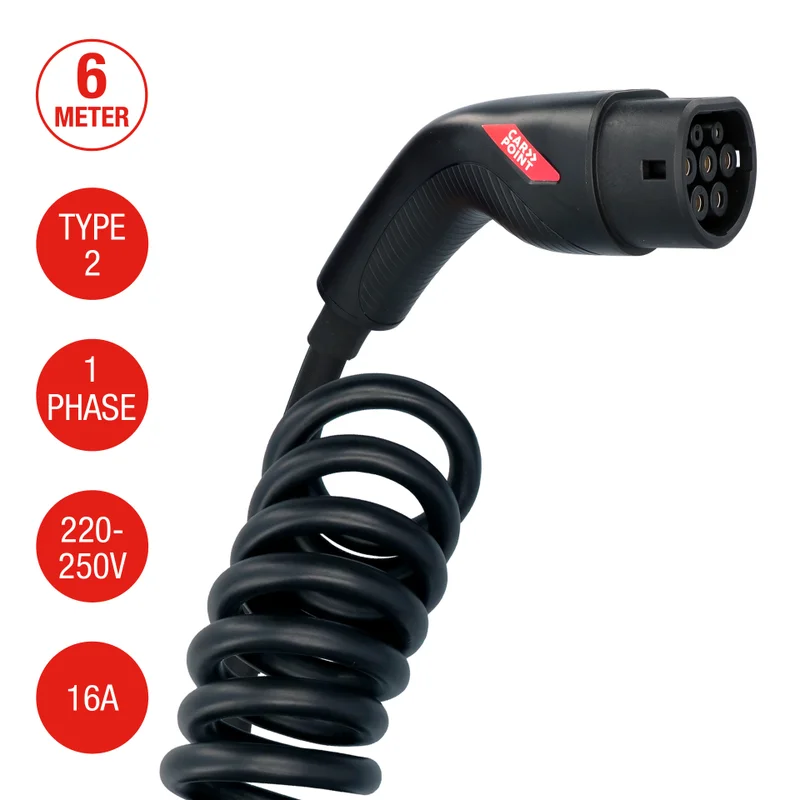

Specifications:

• Spiral charging cable electric vehicle type 2 to type 2
• 16A
• 1 phase
• Maximum charging capacity 3.7kW
• 220-250VAC ± 10%
• Length 6 meter
• Fits all EV cars with type 2 connector
• Charger side plug: type 2 male (IEC 62196-2) with protective cap
• Car charging side plug: type 2 female (IEC 62196-2) with protective cap
• IP55 protection factor
• Insulation resistance >1000MOhm
• Voltage resistance 2000V
• Contact resistance < 0,5 mOhm
• Pin temperature rise <50K
• Lifetime >50.000 times
• Vibration resistance meets the requirements of JDQ53.3
• Cable type 3*2.5mm2 + 2*0.5mm2
• Operating temperature -40°C ~ 50°C
