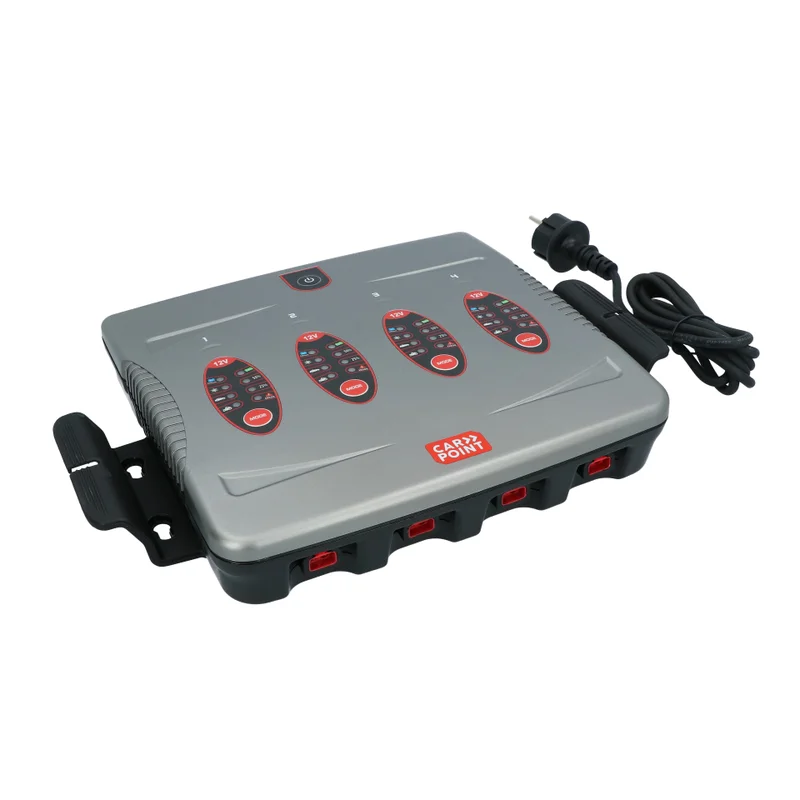

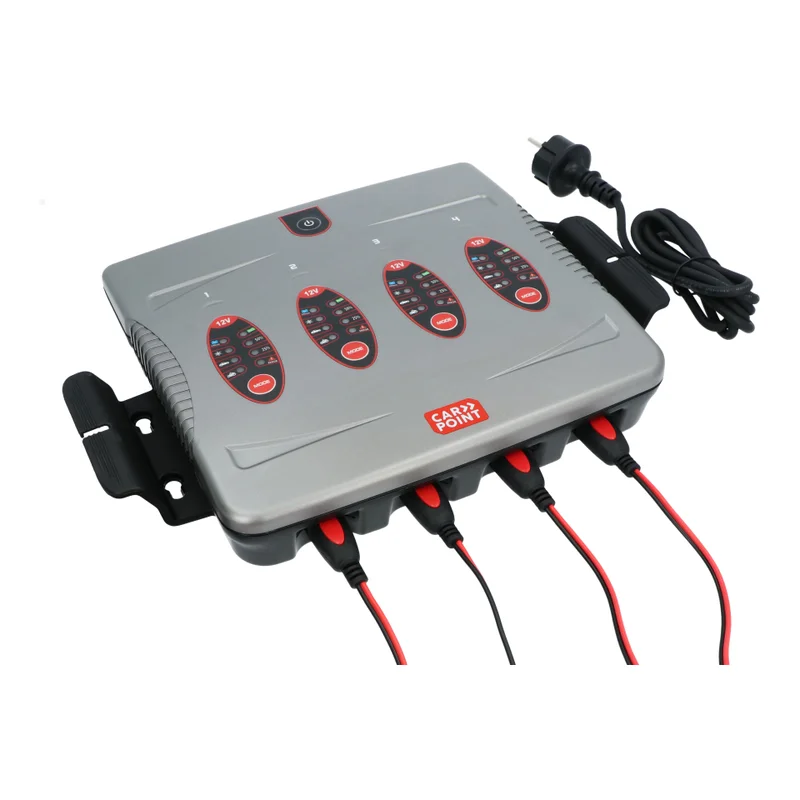

This Carpoint BX-6 battery charger is suitable for simultaneously charging up to four 12 Volt 1.2-120Ah rechargeable lead-acid batteries.

The battery charger goes through a fully automatic charging cycle in 5 steps. Diagnosis and bulk charging, automatically checks battery charge status and starts pulse charging. Bulk phase, maximum charging current of 80% of energy is charged. Absorption phase, charging until almost 100% is reached. Drip charging phase, battery is maintained at maximum level. Maintenance charge phase, starts when battery voltage drops below certain level. Maximum charging current 16 amps.

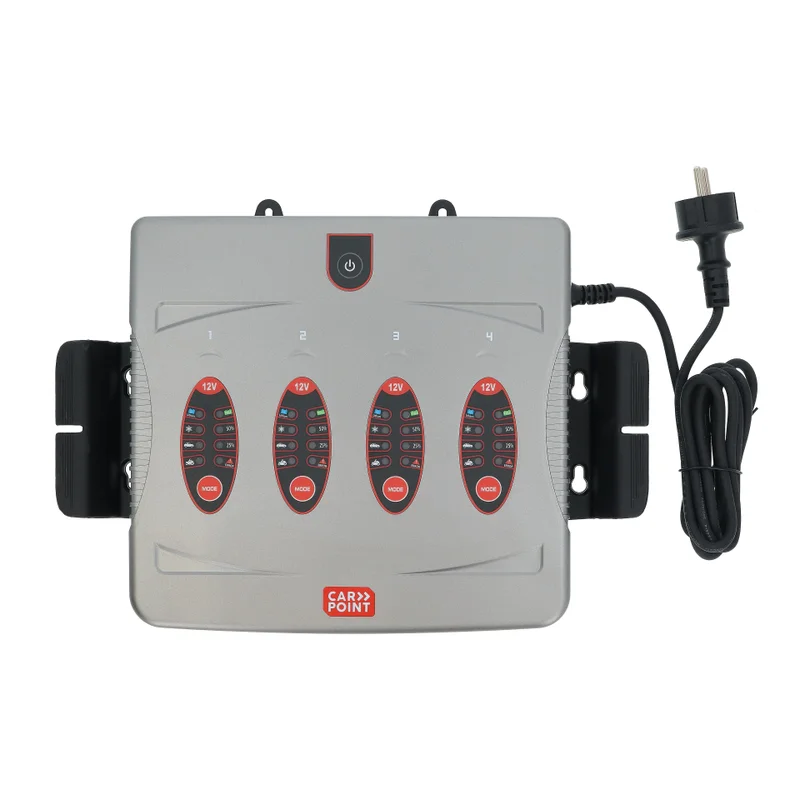

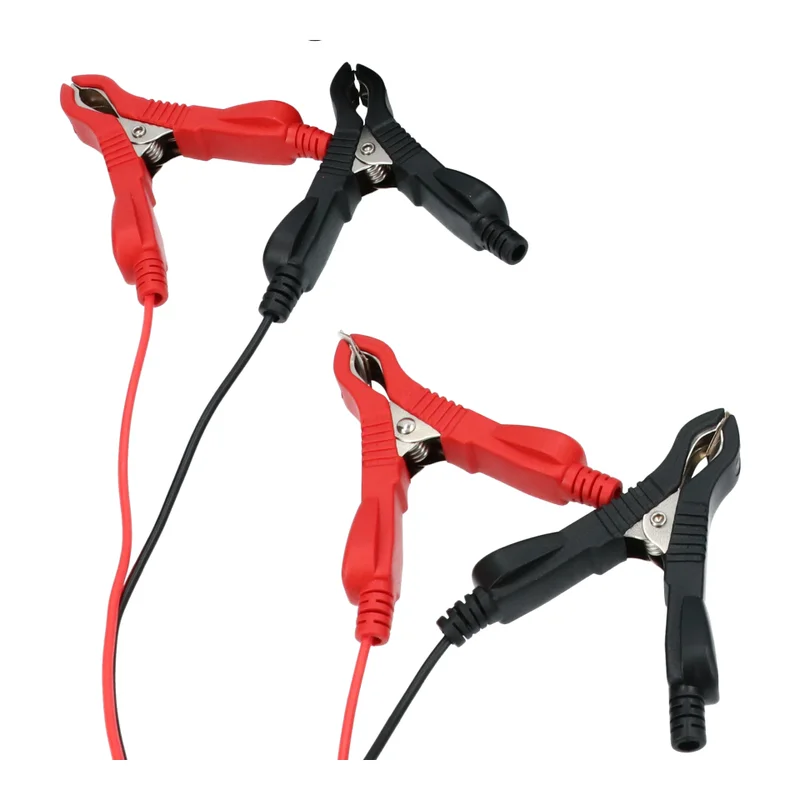

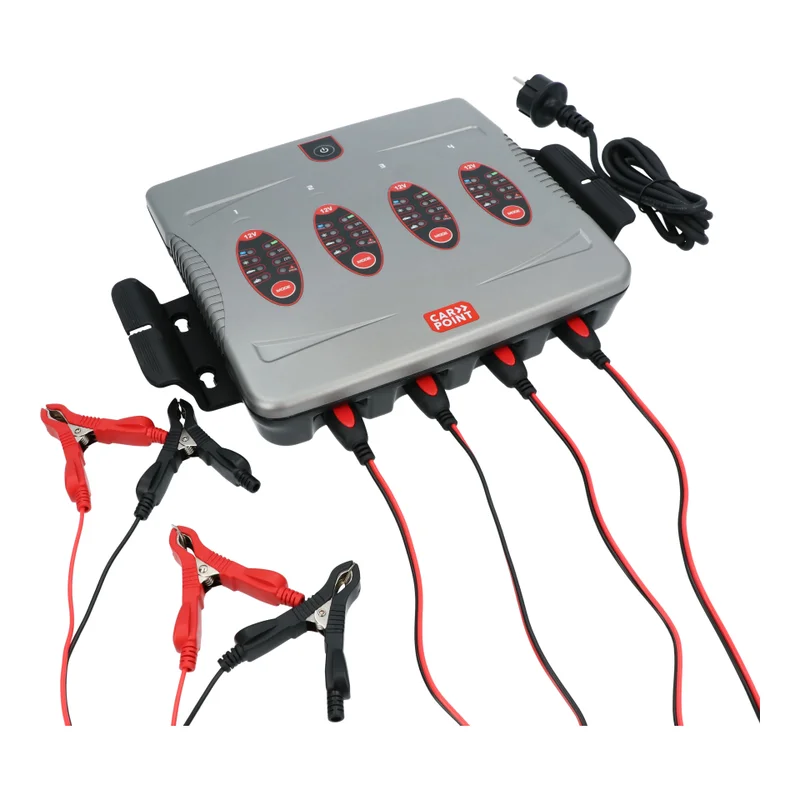

The CP-6 battery charger comes with four cable sets to charge batteries, all sets have two different colour coded cables equipped with battery terminals. All cables are equipped with a quick disconnect. Four separate displays for each battery to be charged, each display has a mode key to switch between different different charging modes and control LED indicator lights for incorrect polarity and four LED lights indicating charging percentage (25/50/75 or 100% full).

Technical data:

• AC input voltage: 220-240VAC 50/60Hz
• Output voltage: Rated: 12V
• Starting current: <25A (no AC input)
• Input current: Maximum 2.4A RMS
• Efficiency: 75%
• Charging voltage: 14.4V +/-0.25V or 14.7V +/- 0.25V
• Charging current: 16mp (4.0A +/-10% or 0.8A +/-10% per Bank)
• Drain leakage current: <5mA
• Ripple: Max 150mV
• Ambient temperature: -20°C to 40°C lower output current at higher tempratures
• Charger type: Fully automatic five-step switching mode with maintenance current
• Battery type: 12V Lead-acid rechargeable batteries (NAT, MF, AGM and GEL)
• Bank Configuration: Quadruple
• Number of batteries that can be charged simultaneously: 4 (disconnect serial wiring during charging)
• Battery capacity: 1.5-120Ah
• Dimensions (l x w x h): 260x246x63mm
• Protection housing: IP64 (Dust and splash-proof) for outdoor use
• Weight: 2.3kg
• Noise level: <50 dB (At a distance of 50cm)
